Tapping-thread units



Our electro-pneumatic quill tapping-thread units, equipped with an integral spindle to improve accuracy runout and stifness, are suitable to work many material types.

Feed advance by oil-bath lubricated lead screw.

All tapping-thread units are equipped with two position limit switches and one safety switch.

The units are suitable for the installation of multi-spindle heads.

tapping-thread units

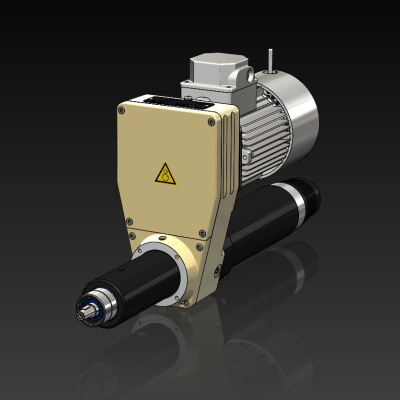

TM10.60

– Feed by lead screw

– Tapping stroke 0-60mm

– Tapping capacity M10 on steel Rm50

– Spindle speed from 500 to 3000 rpm

– Motor power from 0,37 to 1,1 Kw





tapping-thread units

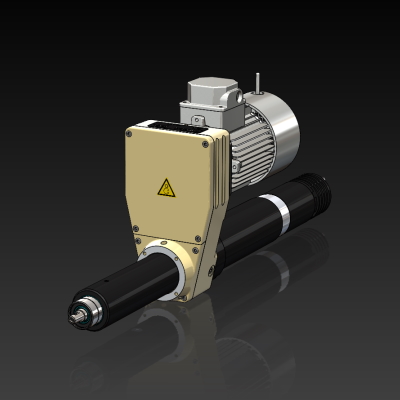

TM10P.90

– Feed by lead screw

– Pneumatic fast approach 50mm + Tapping stroke 0-40mm

– Tapping capacity M10 on steel Rm50

– Spindle speed from 500 to 3000 rpm

– Motor power from 0,37 to 1,1 Kw





tapping-thread units

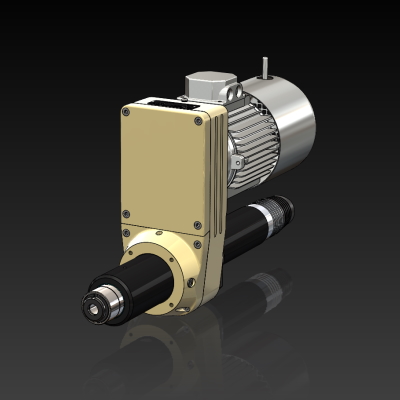

TM20.80

– Feed by lead screw

– Tapping stroke 0-80mm

– Tapping capacity M20 on steel Rm50

– Spindle speed from 100 to 1500 rpm

– Motor power from 0,75 to 3,00 Kw





tapping-thread units

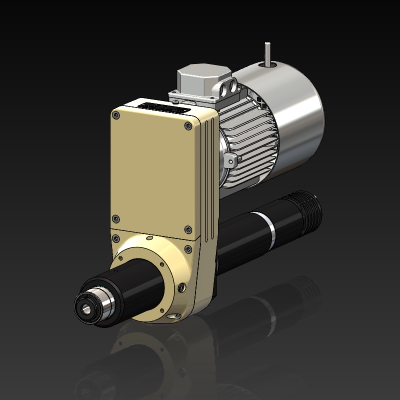

TM20P.90

– Feed by lead screw

– Pneumatic fast approach 50mm + Tapping stroke 0-40mm

– Tapping capacity M20 on steel Rm50

– Spindle speed from 100 to 1500 rpm

– Motor power from 0,75 to 3,00 Kw
