Drill and tap units



Our electro-pneumatic drill and tap quill units, equipped with an integral spindle to improve accuracy runout and stifness, are suitable to work many material types.

The fast and slow feeds are separately adjustable by a hydrocheck feed control coaxial to the spindle.

All electro-pneumatic drill and tap quill units are equipped with two position limit switches, a mechanical stop to ensure position repeatability and with a magnetic sensor on the cylinder for the speed change.

The units are suitable for the installation of multi-spindle heads.

electro-pneumatic drill and tap quill units

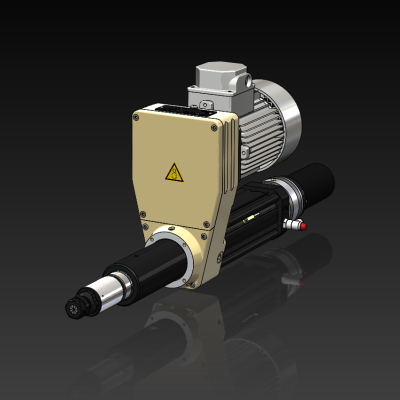

FM10P.50

– Pneumatic feed

– Stroke 50mm

– Drilling capacity M10 on steel Rm50

– Thrust at 6 bar 1200 N

– Spindle speed from 500 to 3000 rpm

– Motor power from 0,37 to 1,1 Kw





electro-pneumatic drill and tap quill units

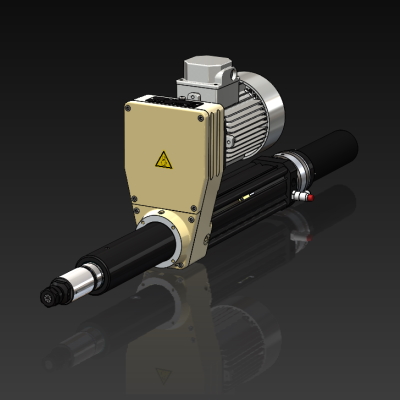

FM10P.100

– Pneumatic feed

– Stroke 100mm

– Drilling capacity M10 on steel Rm50

– Thrust at 6 bar 1200 N

– Spindle speed from 500 to 3000 rpm

– Motor power from 0,37 to 1,1 Kw





electro-pneumatic drill and tap quill units

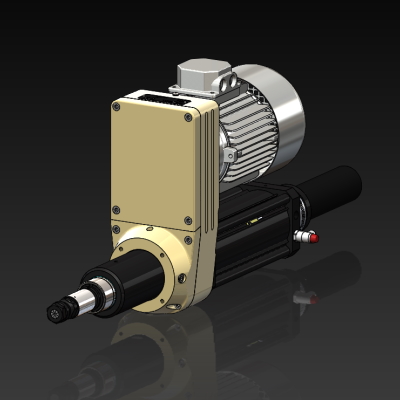

FM20P.100

– Pneumatic feed

– Stroke 100mm

– Drilling capacity M20 on steel Rm50

– Thrust at 6 bar 3700 N

– Spindle speed from 100 to 1500 rpm

– Motor power from 0,75 to 3,00 Kw





electro-pneumatic drill and tap quill units

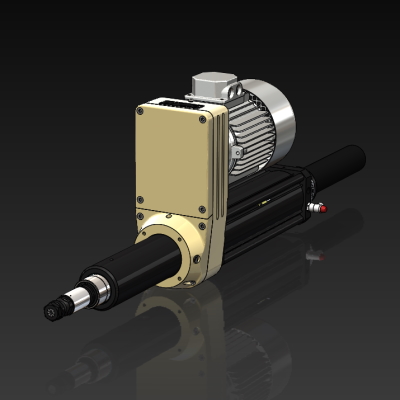

FM20P.150

– Pneumatic feed

– Stroke 150mm

– Drilling capacity M20 on steel Rm50

– Thrust at 6 bar 3700 N

– Spindle speed from 100 to 1500 rpm

– Motor power from 0,75 to 3,00 Kw
